Product Name: Silver Cylindrical Metal Mechanical Component

Product Overview

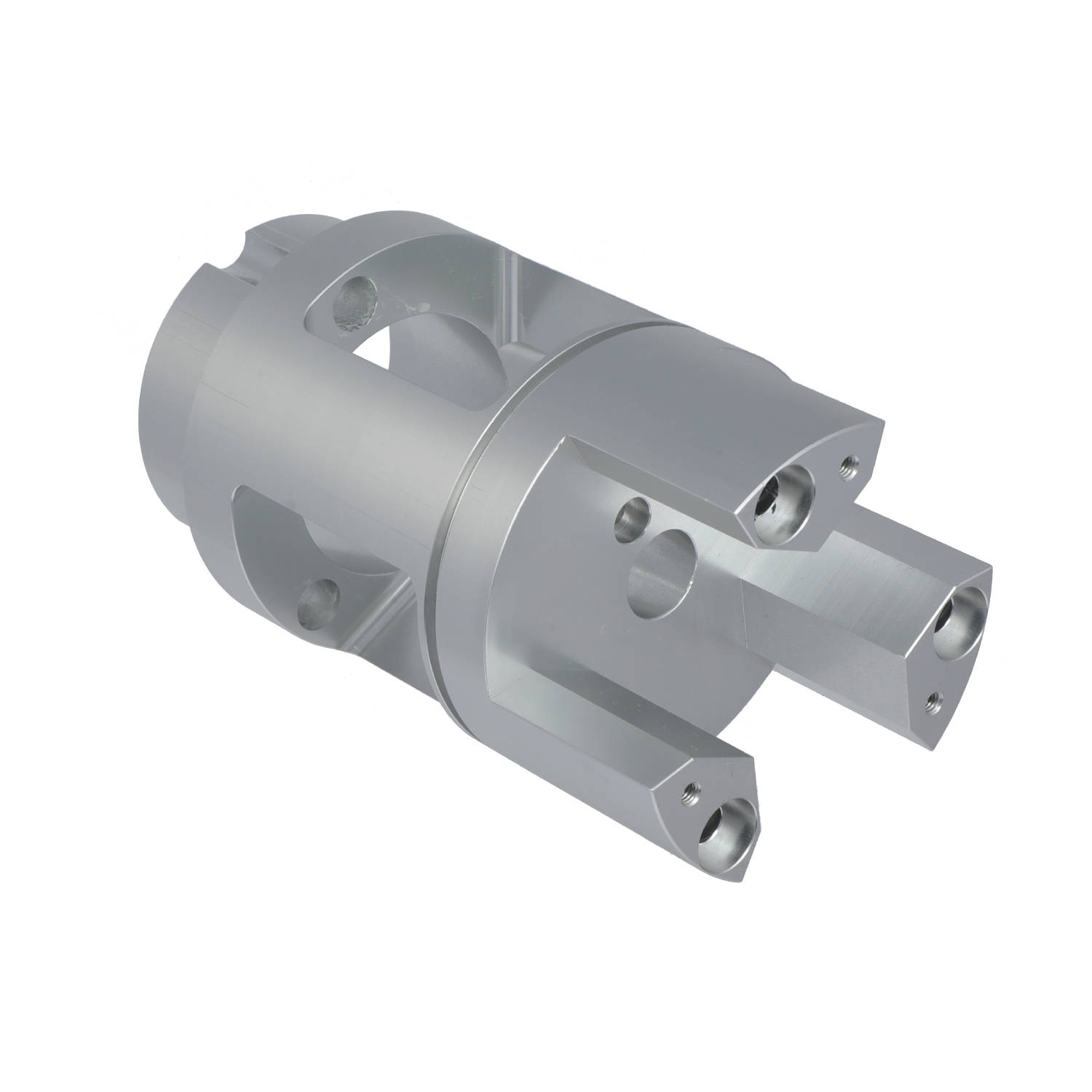

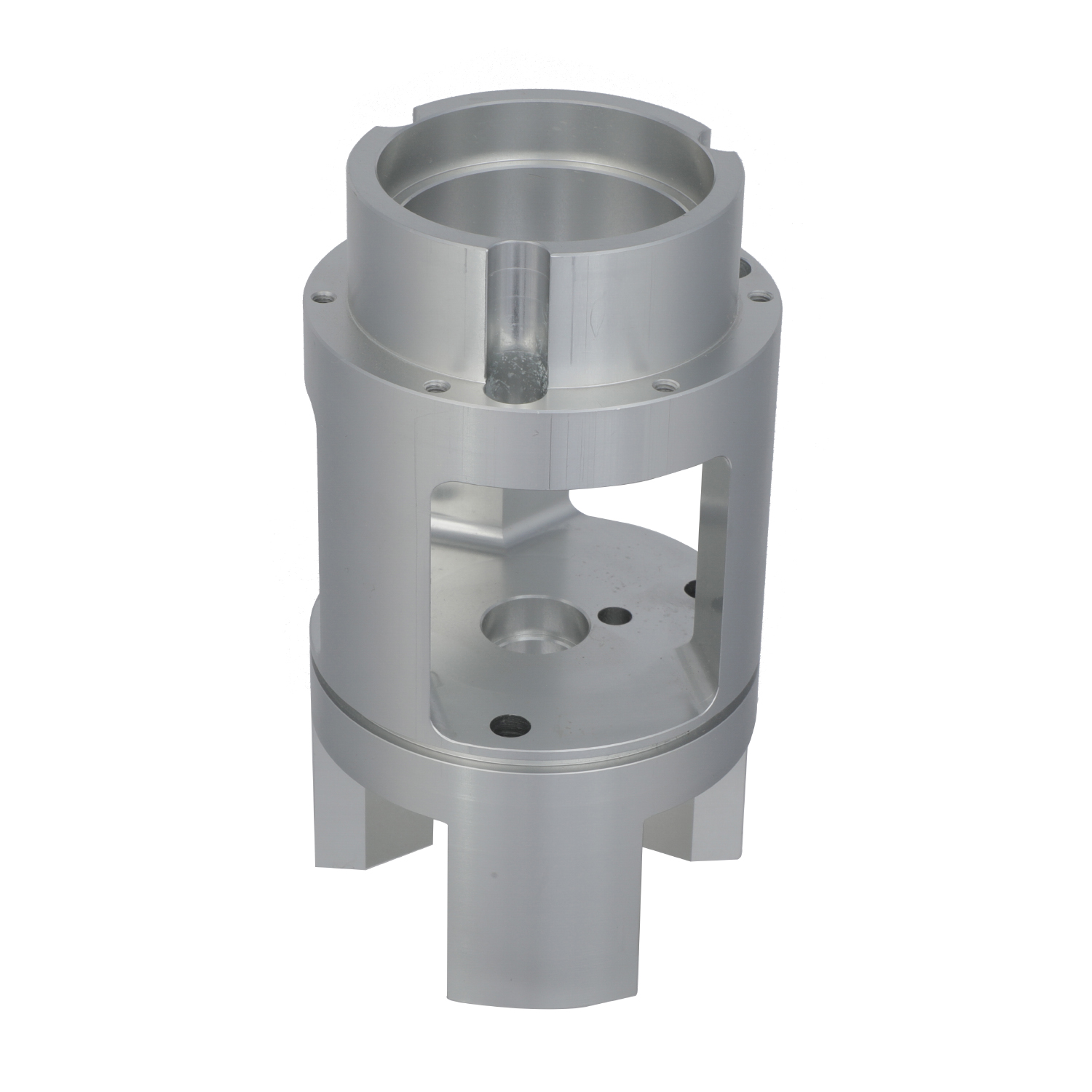

This product is a silver-colored cylindrical metal component, likely made of aluminum or a similar lightweight metal. The main body features a hollow cylindrical upper section with a central opening and a small longitudinal groove on the side. Multiple screw holes are distributed around the upper and middle sections. The middle section includes an open area with additional holes on the inner base, while the lower part has four rectangular protrusions for stability. Mounted on a plain white background, the design emphasizes its industrial precision, making it suitable for machinery mounting or component support applications.

Core Parameters

Design Highlights

1. Functional Structure

   • Hollow Cylindrical Upper Body: Facilitates shaft or axle installation (shear strength ≥15kg).
   • Central Opening: Allows connection to other components or pipelines.
   • Longitudinal Groove: Enhances grip and alignment during assembly.
   • Rectangular Protrusions: Improve stability and prevent displacement.

2. Material & Process

   • Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant.
   • Smooth Surface: Reduces friction (μ ≤0.12) and improves aesthetics.

3. Mechanical Optimization

   • Edge transitions feature R0.3mm fillets to minimize stress concentration.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust groove dimensions, screw hole distribution, or protrusion structure (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (sandblasting/anodizing/brushed texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.




Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
