Product Name: Black L-shaped Metal Mechanical Connector

Product Overview

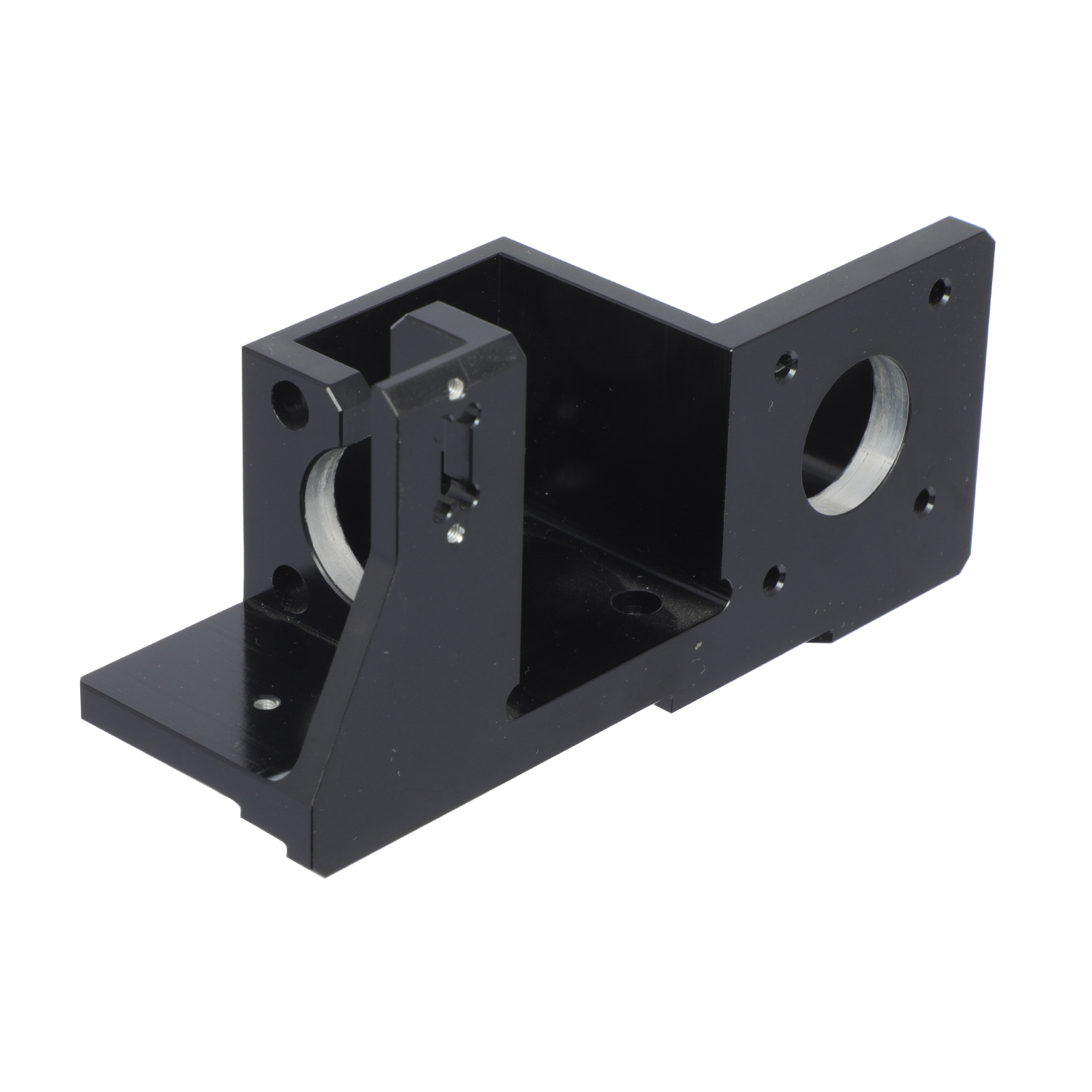

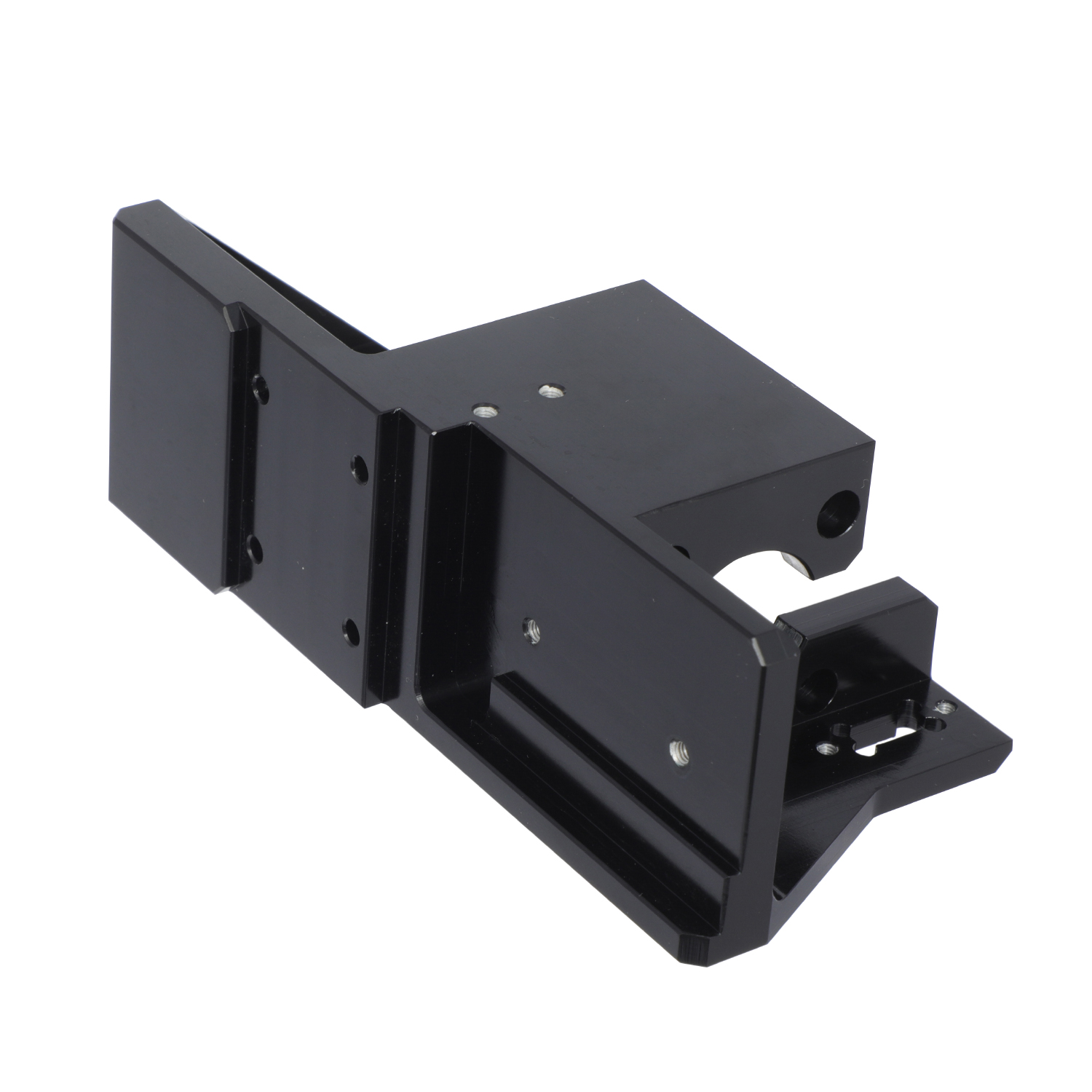

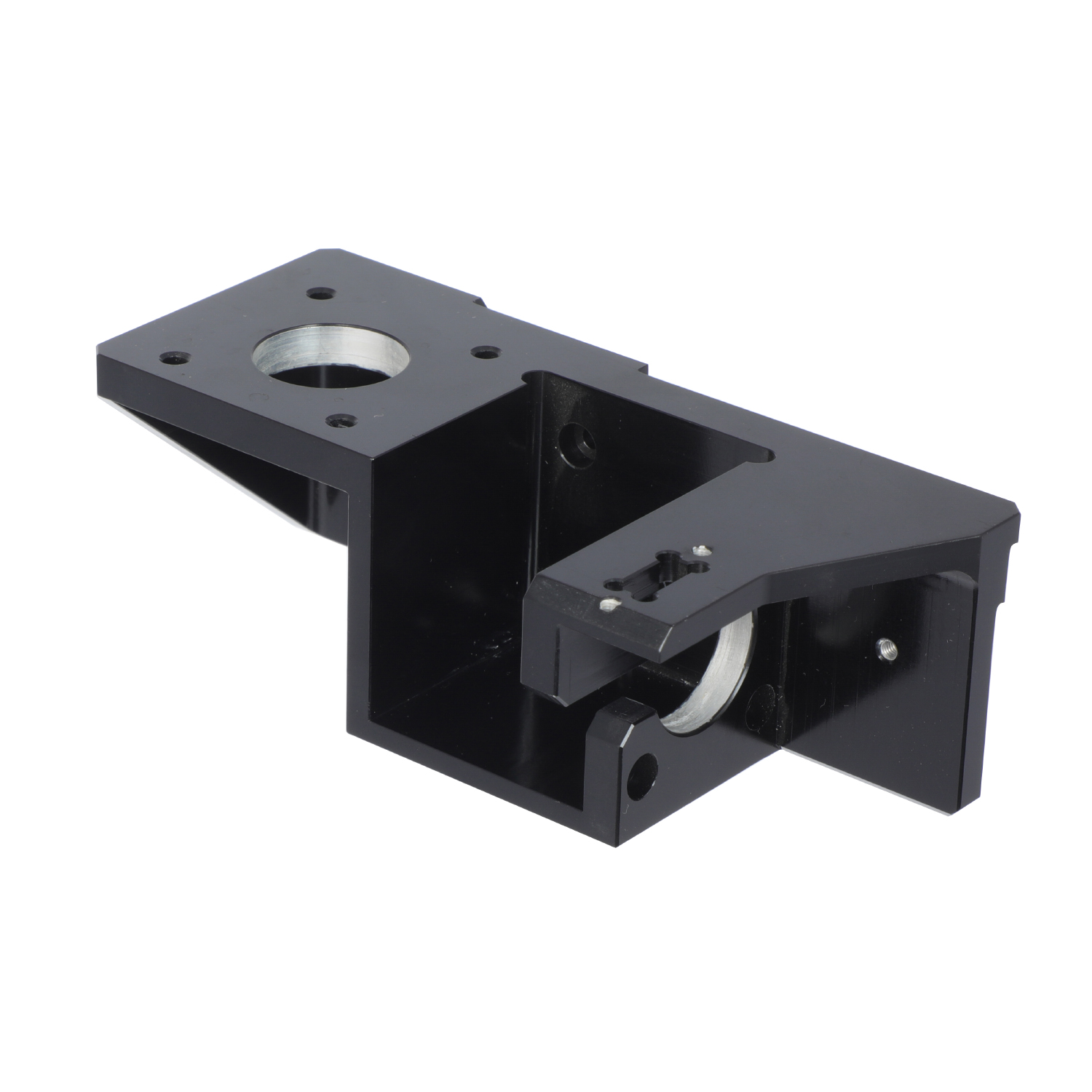

This product is a black metal L-shaped structural component with a mirror-polished finish, presenting an industrial-grade precision texture. The main body features an L-shaped design with a circular hole and four symmetrically distributed screw holes on the upper section. The side includes grooves and a silver circular bearing structure, while the right side extends into a protruding section with two screw holes. Mounted on a pure white background, the minimalist geometric design highlights its industrial features, making it suitable for mechanical assembly, equipment fixation, or industrial device connections.

Core Parameters

Parameter	Technical Specifications
Material	Aluminum Alloy 6061 (Estimated) or Stainless Steel 304
Dimensions	Total length ≈150mm × Width 60mm × Height 40mm (Estimated) Circular hole diameter: Φ10–Φ15mm Screw hole specification: M4–M6 (four holes)
Structure	L-shaped body + Upper circular hole + Four screw holes + Side grooves (with silver bearing) + Right-side protruding dual screw holes
Surface Finish	Mirror polishing (Ra ≤0.8μm)
Load Capacity	Static load capacity ≥20kg (ISO 6055 standard)

Design Highlights

Functional Structural Design

L-shaped Layout: Optimizes space utilization for narrow installation environments.
Circular Hole & Screw Holes:
- Upper Φ10–Φ15mm hole for shaft pin or bolt fixation (shear strength ≥10kg).
- Four M4–M6 screw holes support rapid assembly (shear strength ≥8kg).
Side Grooves & Bearing: Silver circular bearing (Φ5–Φ8mm) enhances stability for rotating components.
Right-side Protrusion: Dual screw holes improve connection rigidity.

Material & Process Compatibility

Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision equipment. Stainless Steel 304 version available for enhanced rust resistance.
Mirror Polishing: Reduces friction coefficient (μ ≤0.12), minimizes assembly scratches, and improves industrial aesthetics.

Mechanical Optimization

Groove edges feature R0.3mm fillet transitions to disperse stress concentration and extend service life.

Application Scenarios

Industry	Typical Use Cases
Industrial Equipment	Machine tool fixture positioning / Hydraulic valve brackets
Automation Machinery	Robotic arm joint interfaces / Sensor mounting bases
Automotive Components	Engine part fixation / Cooling system piping

Customization Services

✅ Supported Customizations:

Adjust L-angle, hole distribution, or groove dimensions (requires 3D model in STEP format).
Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
Surface treatment customization (sandblasting/anodizing/brushed texture).

⚠️ Requirements:

3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
Tel: +86 150-1532-6863
Email: cassy@xqdmachining.com
Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
