Product Name: Black L-shaped Metal Connector

Product Overview

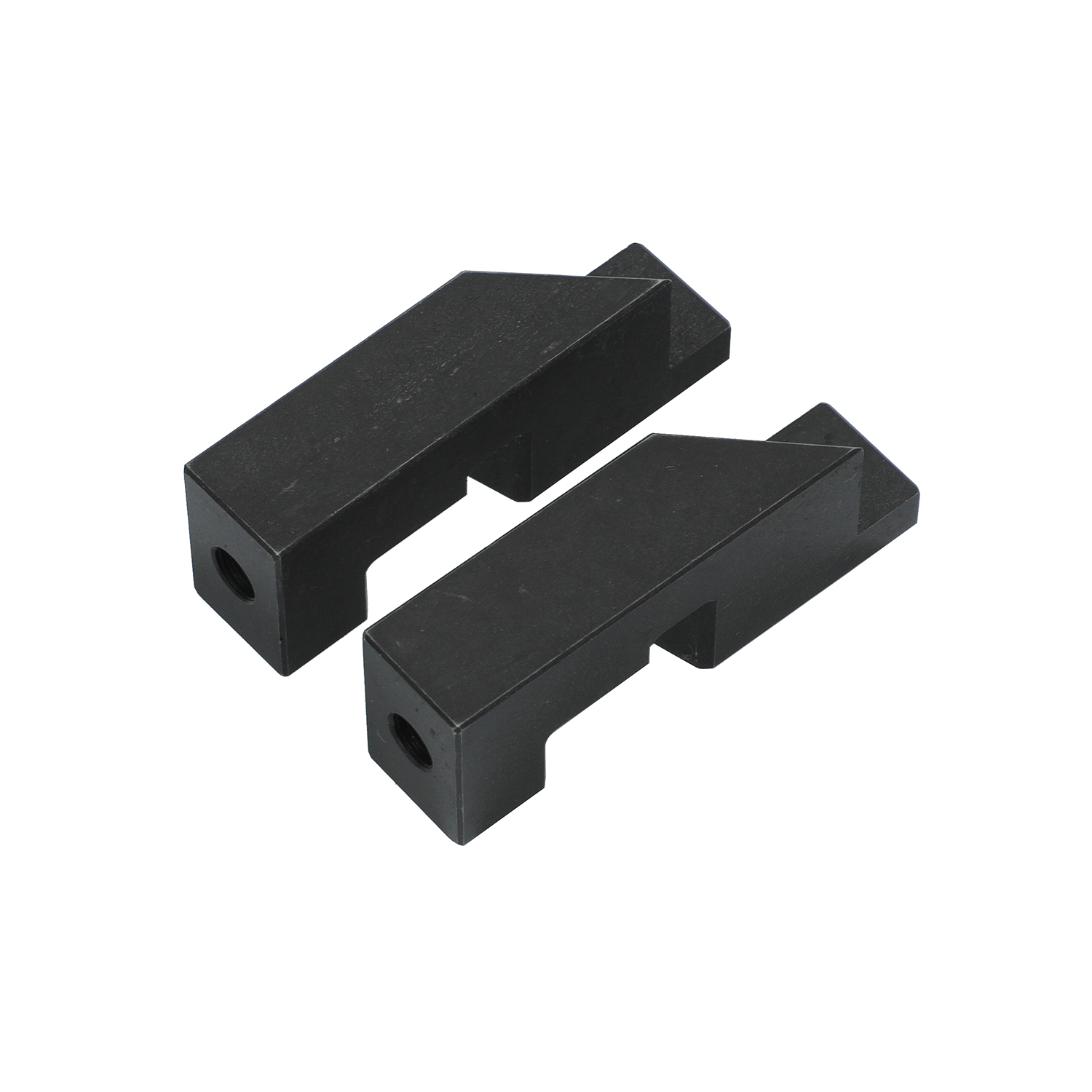

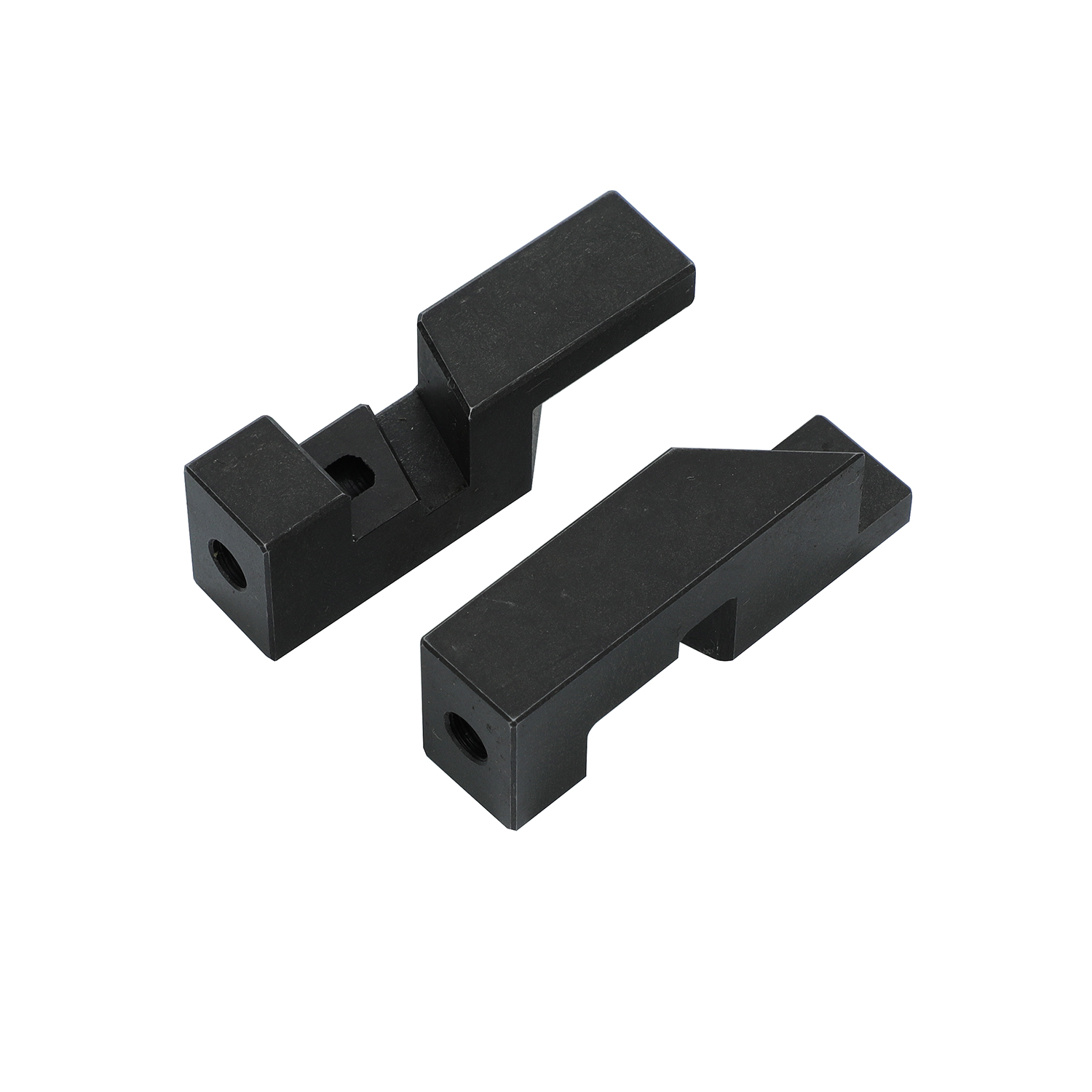

This product consists of two black L-shaped metal components with a mirror-polished finish, presenting an industrial-grade precision texture. Each component features square protrusions at both ends and circular holes on one side. The parts are arranged diagonally against a pure white background, highlighting their geometric features. Suitable for mechanical assembly, equipment fixation, or industrial connection applications.

Core Parameters

Design Highlights

Functional Structural Design

• L-shaped Layout: Optimizes space utilization for narrow installation environments.
• Square Protrusions and Circular Holes:
  • Square protrusions (5mm edge length) enhance structural rigidity and prevent displacement during assembly.
  • Circular holes (Φ3–Φ5mm) support screw or pin fixation (shear strength ≥5kg).

Material & Process Compatibility

• Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision equipment. Stainless Steel 304 version available for enhanced rust resistance.
• Mirror Polishing: Reduces friction coefficient (μ ≤0.12), minimizes assembly scratches, and improves industrial aesthetics.

Mechanical Optimization

• Hole edges feature R0.3mm fillet transitions to disperse stress concentration and extend service life.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust L-angle, protrusion dimensions, or hole distribution (requires 3D model in STEP format).
2. Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
3. Surface treatment customization (sandblasting/anodizing/brushed texture).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
