The Perfect Solution to OEM Custom Aluminum Aerospace Parts: Precision Engineering Redefined

   Industry Background

   In the aerospace industry, precision and reliability are non-negotiable. Custom aluminum OEM parts must meet stringent performance, weight, and durability standards while accommodating complex design requirements. Below, we analyze a real-world engineering case (based on the provided image of precision-machined aluminum components) to demonstrate how advanced manufacturing techniques deliver flawless solutions for OEMs.

Case Study: High-Precision Aluminum Components for Demanding Applications

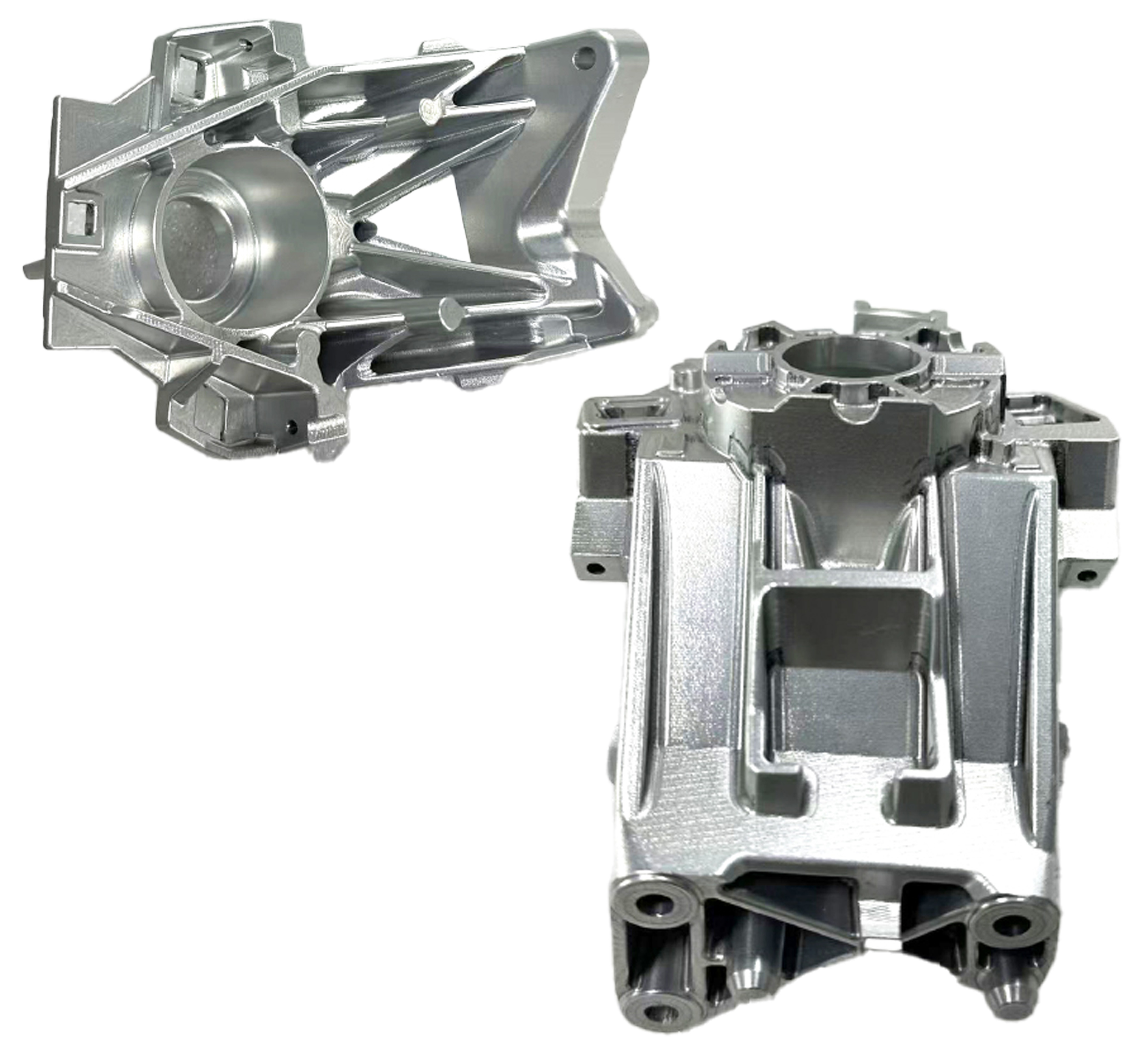

The image highlights two critical aluminum parts with distinct yet complementary features:

1. Complex Component (Left):

   • Design: Intricate geometry with multiple protrusions and through-holes.
   • Function: Likely serves as a structural connector or support bracket, requiring tight tolerances for load distribution.
   • Surface Finish: Smooth, mirror-like machining minimizes friction and corrosion risks.

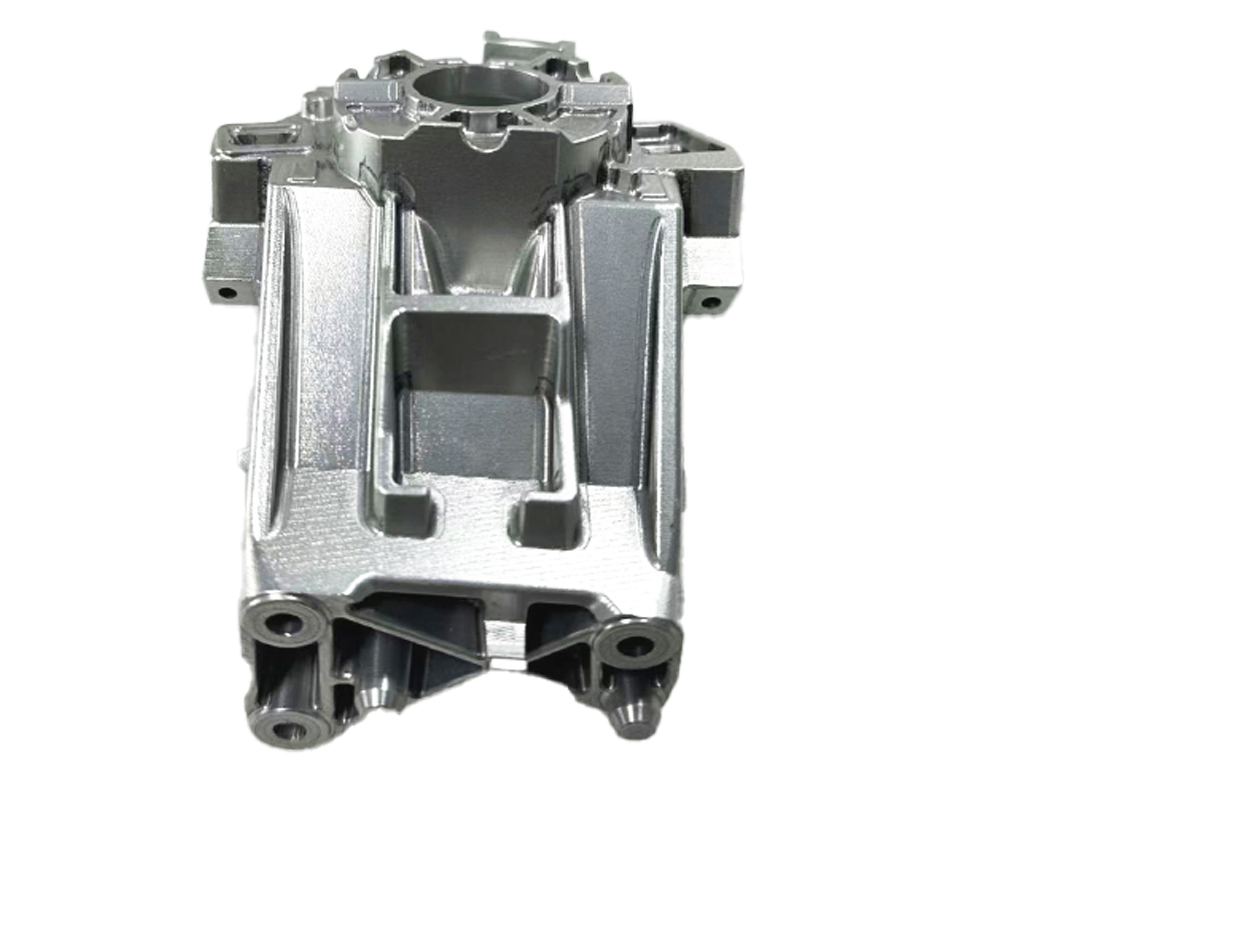

2. Modular Component (Right):

   • Design: Simpler form with grooves and mounting holes.
   • Function: Designed for rapid assembly or part integration, emphasizing functional ergonomics.
   • Surface Treatment: Uniform anodizing enhances wear resistance and thermal stability.

Both parts exemplify aerospace-grade engineering, though their applications may extend to automotive or industrial machinery.

Core Elements of a Successful OEM Aluminum Solution

1. Material Selection: Aluminum Alloys Tailored to Aerospace Demands

• Grade Choice: Use 7075-T6 or 6061-T6 aluminum for high strength-to-weight ratios and corrosion resistance.
• Heat Treatment: Enhance fatigue resistance for cyclic stress environments (e.g., turbine components).

2. Design Optimization for Manufacturability (DFM)

• Topology Optimization: Leverage CAD/CAE tools to balance weight reduction with structural integrity, as seen in the complex part’s lattice-free design.
• Tolerance Stacking: Ensure critical dimensions (e.g., hole alignment) adhere to ±0.01mm precision to avoid assembly misalignments.

3. Advanced Machining Techniques

• CNC Milling & Drilling: Achieve multi-axis machining for intricate geometries (e.g., the left component’s protrusions).
• Electrochemical Polishing: Achieve Ra < 0.4μm surface finish to meet aerospace contamination standards.

4. Quality Assurance: From Prototyping to Mass Production

• In-Process Inspection: Use CMM (Coordinate Measuring Machines) to verify critical features.
• Surface Analysis: SEM imaging to detect micro-defects post-machining.

Why This Approach Works for Aerospace OEMs

• Scalability: Modular designs (like the right component) allow batch customization without sacrificing lead times.
• Cost Efficiency: High-volume CNC machining reduces per-unit costs while maintaining aerospace tolerances.
• Compliance: Adherence to Nadcap, AS9100, and NADCAP standards ensures global aerospace certification readiness.

Conclusion

The interplay of material science, precision machining, and rigorous QA outlined in this case study provides a replicable framework for OEMs. By adopting these strategies, manufacturers can deliver aluminum parts that exceed performance expectations while streamlining supply chains. For aerospace applications, this methodology translates to lighter, stronger, and more reliable components—key to next-gen aviation innovation.
