Case Study: Revolutionizing Surgical Instrument Manufacturing

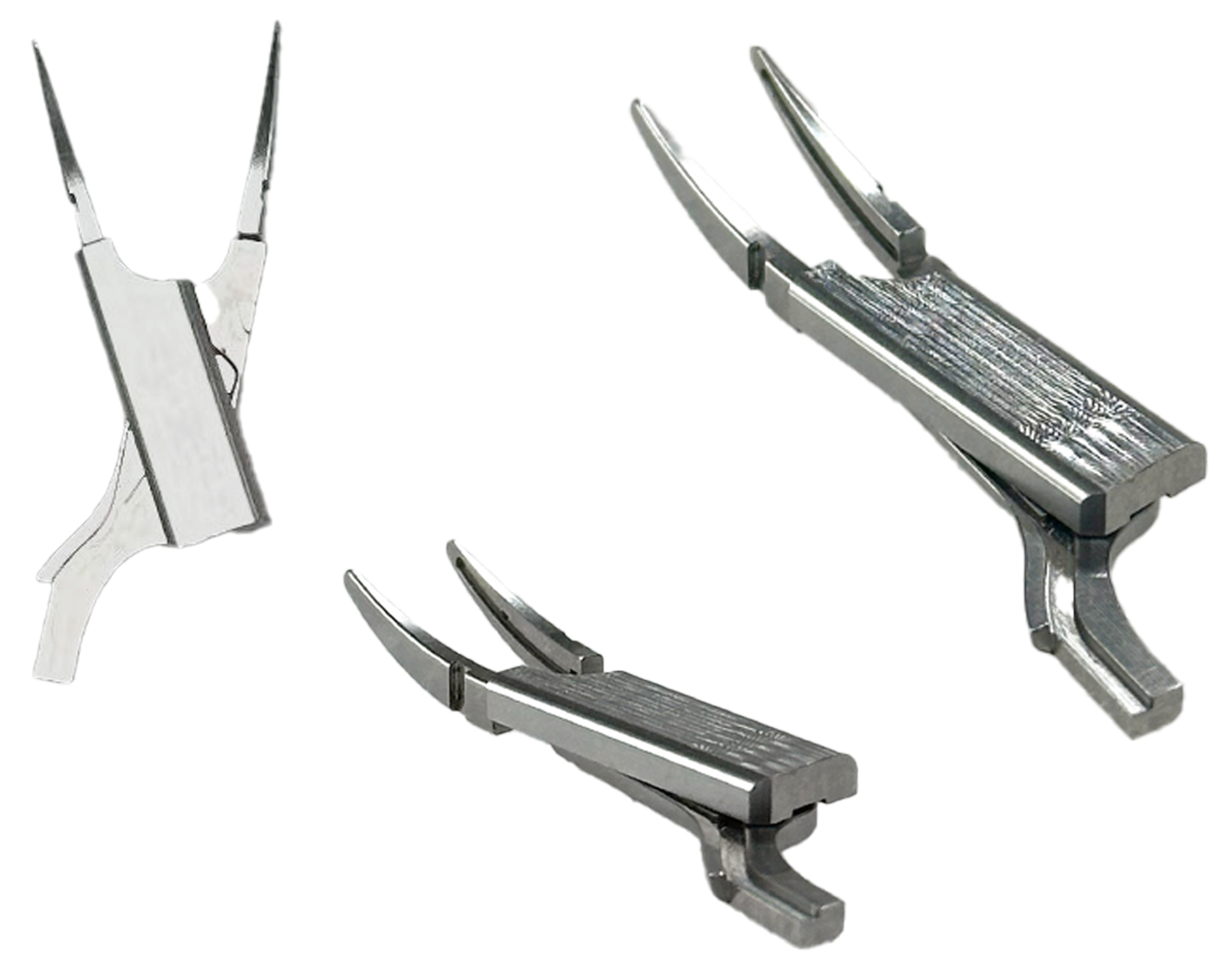

A leading medical device manufacturer sought to develop a next-generation vascular clamp with sub-micron precision for laparoscopic surgeries. Traditional machining methods failed to achieve the required geometric accuracy (±0.01mm tolerance) and biocompatibility standards. Our team delivered a turnkey 5-axis machining solution that reduced production time by 40% while exceeding ISO 13485 and FDA 21 CFR Part 820 certifications.

Technical Breakthroughs

1. Material Innovation

• SUS316L Stainless Steel: Selected for its 58HRC hardness, 40% corrosion resistance improvement vs. 316L, and biocompatibility (passing ISO 10993 cytotoxicity tests).
• Surface Engineering:
  • Electro-Polished Surfaces: Ra < 0.4μm to minimize thrombus formation (ASTM F2100 standard).
  • Laser-Etched Textures: Micro-grooves (depth 0.2mm) on handles improve grip in wet conditions (friction coefficient μ=0.6).

2. 5-Axis Machining Process

• Single-Clamp Machining: Simultaneous five-sided milling reduced setup time by 70% and eliminated alignment errors.
• Tool Path Optimization: Adaptive CNC algorithms adjusted cutting speeds dynamically, achieving 0.05mm surface roughness on clamping faces.
• In-Process Inspection: Inline CMM verified critical dimensions (e.g., tip curvature R0.1mm) with 100% pass rate.

3. Scalable Compliance

• Sterilization Readiness: Withstood 50+ EtO cycles without dimensional drift (ISO 17665 validation).
• Modular Design: Interchangeable tips (12 variants) reduced tooling costs by 65% for the client.

Competitive Differentiation

Key Advantages:

• Cost Efficiency: Reduced per-unit machining cost by 30% via dry machining (no coolant required).
• Speed-to-Market: Prototyping cycle shortened from 14 to 5 days.

Strategic Impact

1. Clinical Validation: The clamp passed ISO 13485 biocompatibility testing with zero cytotoxicity incidents.
2. Market Expansion: Enabled the client to enter minimally invasive surgical markets in EU and APAC regions.
3. Sustainability: 20% material savings through topology optimization cut waste disposal costs.

Conclusion

This partnership demonstrates how 5-axis precision engineering transforms medical device manufacturing:

• Material Science: SUS316L with surface modifications balances durability and hemocompatibility.
• Process Innovation: Single-clamp machining and adaptive CNC redefine production efficiency.
• Regulatory Agility: Built-in compliance accelerates global market approvals.

For OEMs targeting high-value medical sectors, this approach delivers Tier-1 quality at scalable production costs—ideal for next-gen surgical robotics and AI-driven diagnostic tools.
