Product Name: Dual Square Plastic Connector

Product Overview

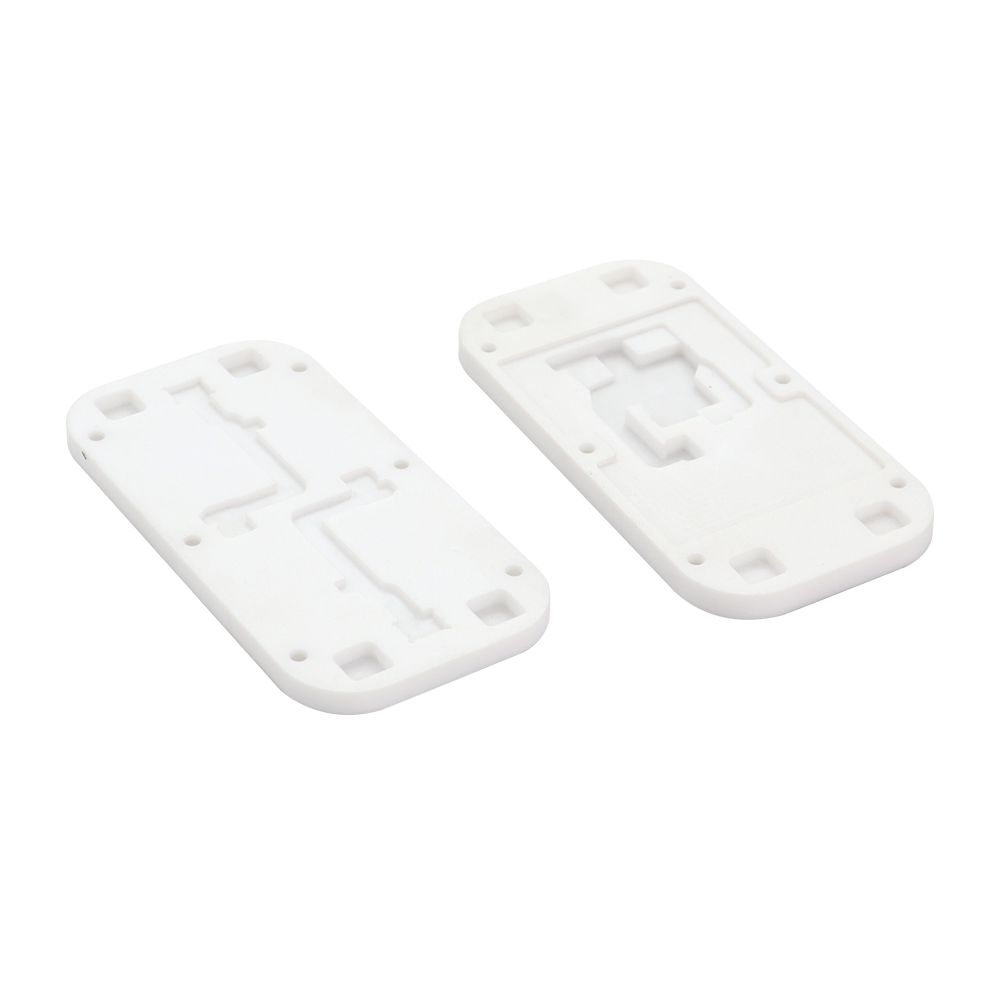

This product consists of two white plastic rectangular components with rounded edges (R5mm). The surfaces feature square and circular grooves and holes. The components are arranged side by side on a pure white background, spaced evenly to present a minimalist industrial design. Suitable for structural connection and fixation in industrial equipment, automation machinery, or consumer electronics.

Core Parameters

Design Highlights

Functional Structural Design

• Dual Layout: Side-by-side design saves installation space, ideal for compact devices.
• Grooves and Holes:
  • Square Grooves (Φ5–Φ8mm): Used for snap-fit fixation or cable management.
  • Circular Holes (Φ6–Φ10mm): Support screw or pin installation (shear strength ≥5kg).
• Rounded Edges: R5mm corners reduce stress concentration and prevent cracking during assembly.

Material & Process Compatibility

• Polycarbonate (PC): High impact resistance (ｄｒｏｐ test ≥1.2m), with optional transparent versions.
• ABS Plastic: Wear-resistant (Mohs hardness ≥1.2), suitable for frequent plugging scenarios.
• Smooth Surface: Reduces friction coefficient (μ ≤0.2), facilitating cleaning and assembly.

Industrial Adaptability

• Side-by-side arrangement and pure white background highlight geometric features, compatible with automated visual inspection systems.

Application Scenarios

Customization Services

✅ Supported Customizations:

1. Adjust groove/hole distribution, corner radius, or component spacing (requires 3D model in STEP format).
2. Material upgrades (e.g., reinforced nylon PA66 for high-temperature environments).
3. Surface treatment customization (matte/silicone coating).

⚠️ Requirements:

• 3D models and tolerance documents (ISO 2768 standard) required.

Technical Support
 Tel: +86 150-1532-6863
 Email: cassy@xqdmachining.com
 Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
