The following analysis of this part considers its material, structure, function, and manufacturing process:

一、Material:

Based on its metallic texture, lightweight characteristics, and precision machining marks, the material is inferred to be A356 aluminum alloy.

This type of material combines high strength, good heat dissipation, and machinability, making it a mainstream choice for automotive engine block power components.

二、Structure and Function:

This part is a multi-cylinder engine block structure, exhibiting typical characteristics of a "power core carrier":

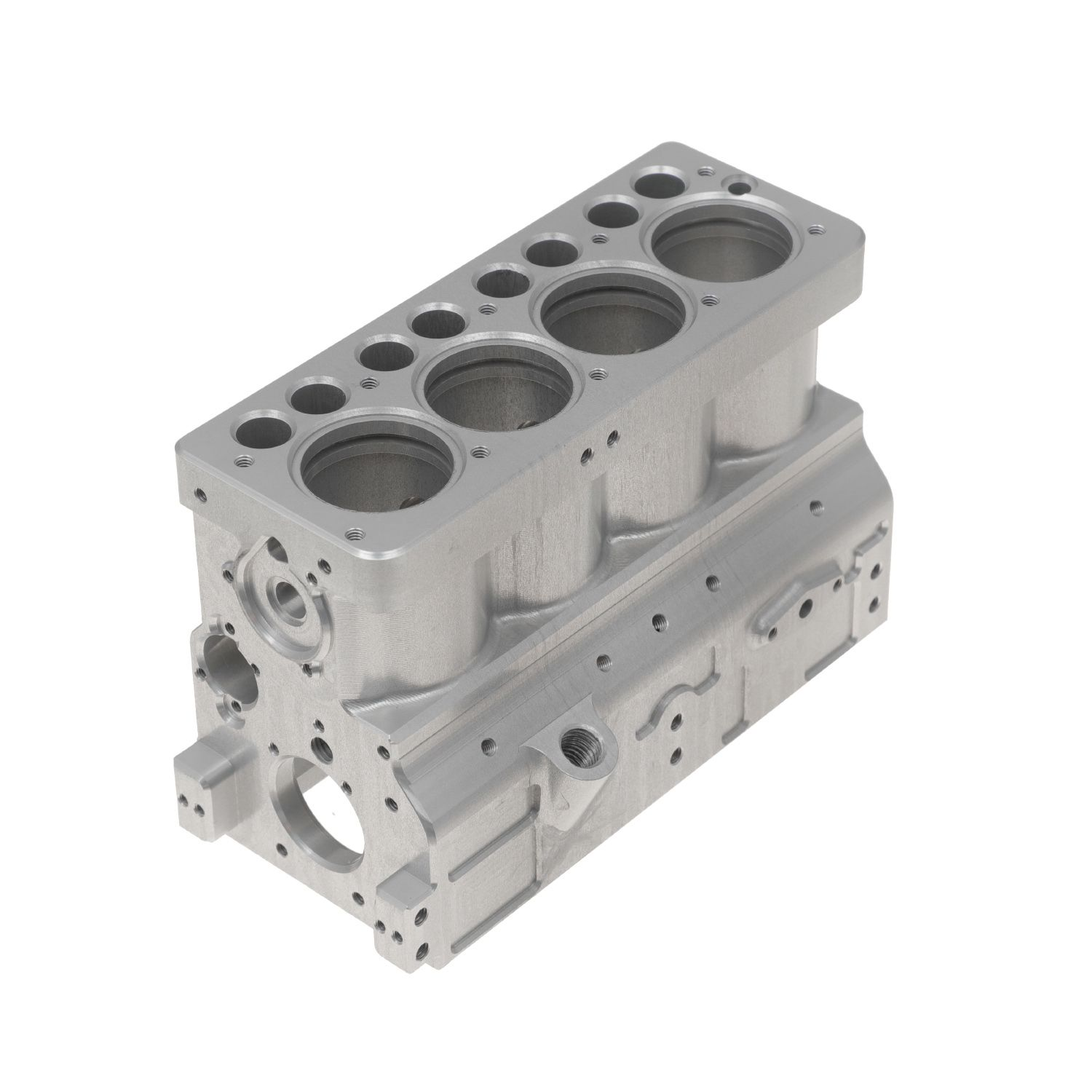

The four cylindrical chambers at the top are cylinder bores, used to accommodate the reciprocating motion of the piston, serving as the core space for fuel combustion

and energy conversion;

The numerous threaded and smooth holes distributed on the surface are used to assemble components such as the cylinder head, oil passages, water passages,

and sensors, enabling functions such as fuel supply, cooling, and monitoring;

The complex chambers and pipe interfaces on the sides are used for oil circulation and coolant flow, ensuring engine lubrication and heat dissipation.

三、Machining Process

The machining process reflects high-precision manufacturing capabilities:

CNC Precision Machining:

Cylinder bores, threaded holes, and complex chambers are formed through multi-axis CNC milling and boring. The roundness and cylindricity

of the cylinder bores must be controlled within micrometers (≤0.02mm) to ensure the sealing of piston movement.

Surface Treatment:

The aluminum alloy surface retains its original color after milling. Some key mating surfaces (such as the cylinder bores) are honed to improve surface

finish and wear resistance.

Quality Inspection:

Strict inspection is required for cylinder bore dimensional tolerances, bore coaxiality, and oil/water passage sealing to ensure the stability and

reliability of engine power output.

四、Application Scenarios

Given the structure's "multi-cylinder layout and complex piping interfaces," this part is used in automotive engines (especially high-performance or customized engines),

playing a core role in "fuel combustion, power output, and system integration." Its machining accuracy directly affects the engine's power performance, fuel consumption,

and reliability.
