Dongguan Qida high-precision customized aluminum parts

Both of these are parts produced by Qida in Dongguan, and they are both made of aluminum.

The appearance and function analysis is as follows.

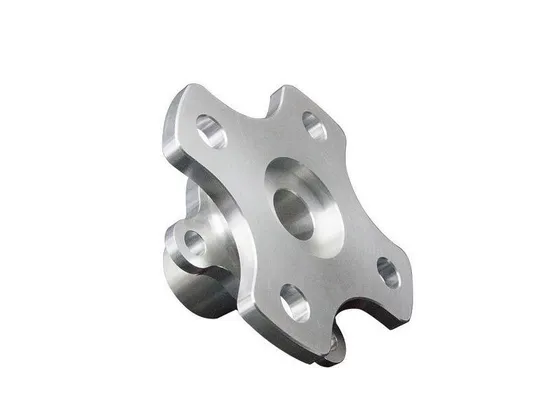

The first type (polygonal perforated metal piece):

    Appearance and structure:

The overall shape is star-like with multiple evenly distributed mounting holes, a larger central hole, and raised connection or positioning structures at the edges.

Application scenarios:

These types of components are commonly used in applications requiring multi-directional connection, positioning, or transmission, such as transmission parts in machinery, connection flanges in precision instruments, etc. With its multiple mounting holes and unique shape, it ensures stable assembly and power transmission.

    Processing requirements:

High precision is required for the positions of each hole (such as hole spacing, coaxiality, etc.), dimensional accuracy of the shape, and surface roughness to ensure that the assembled equipment operates accurately and stably.

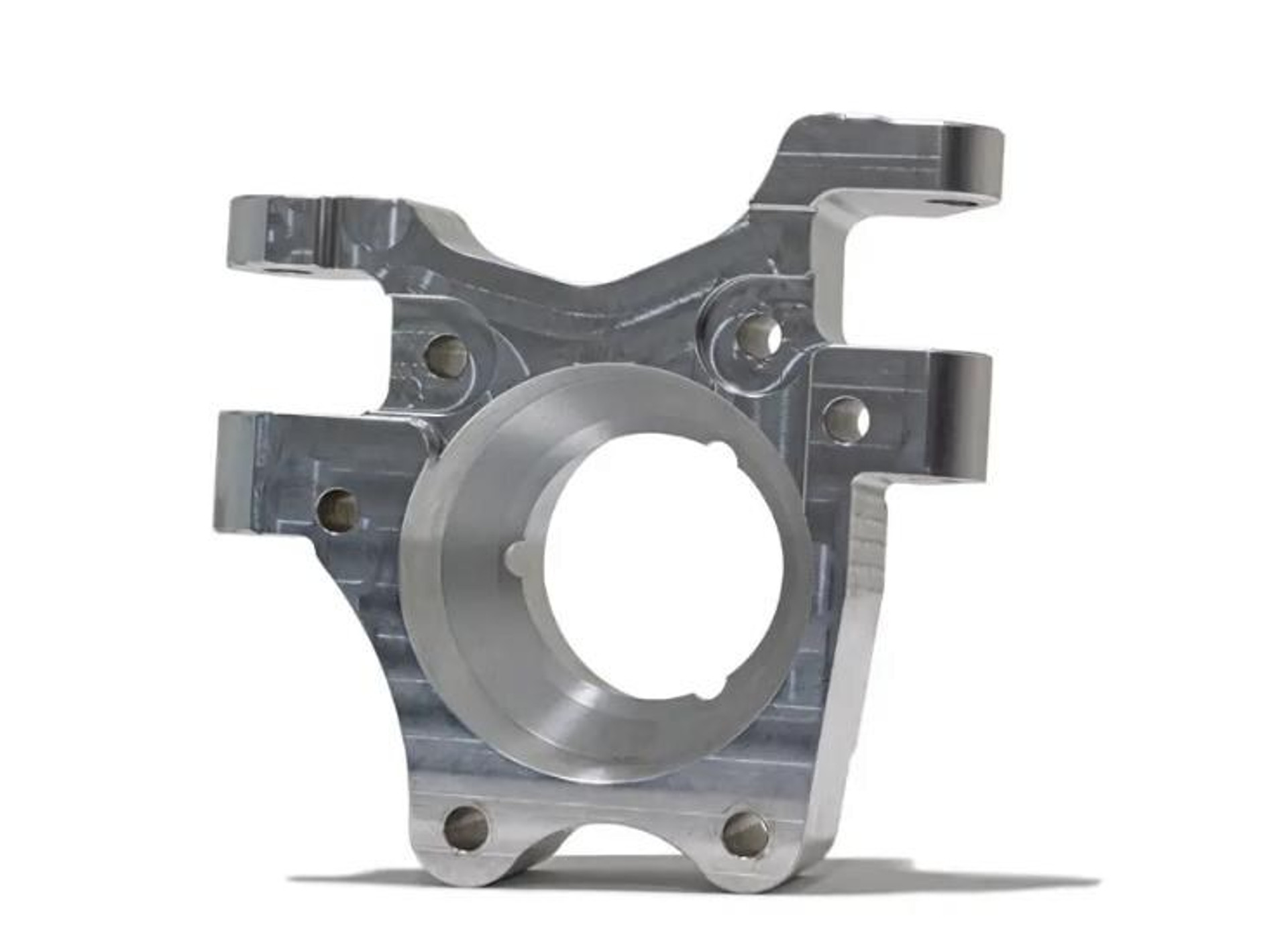

The second type (complex structure metal piece):

    Appearance and structure:

The shape is more complex, with multiple connecting ears at different angles, mounting holes, and a larger aperture in the center, giving it an irregular overall outline, featuring multi-directional connection and support.

    Application scenarios:

It is likely to be a steering knuckle or similar key structural component in the automotive or aerospace fields, used for important functions such as support and steering, and must withstand significant loads and torque.

    Processing requirements:

Due to the complex structure, the dimensional tolerances and geometric tolerances (such as parallelism, verticality, roundness, etc.) are extremely strict, and the surface quality must also be excellent to ensure normal operation under high load and high precision conditions, ensuring the safety and performance of equipment or vehicles.
