Aluminum Alloy Spare Parts | Custom-Made, High-Quality Components

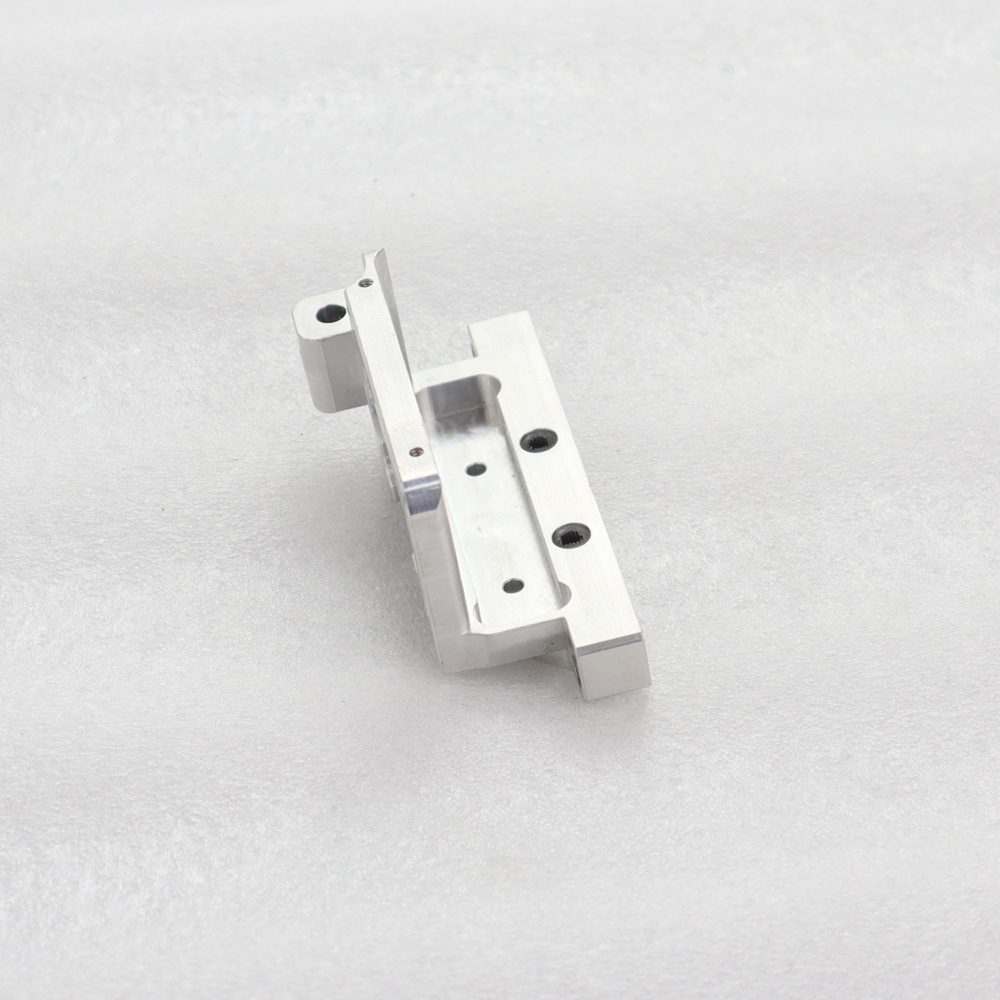

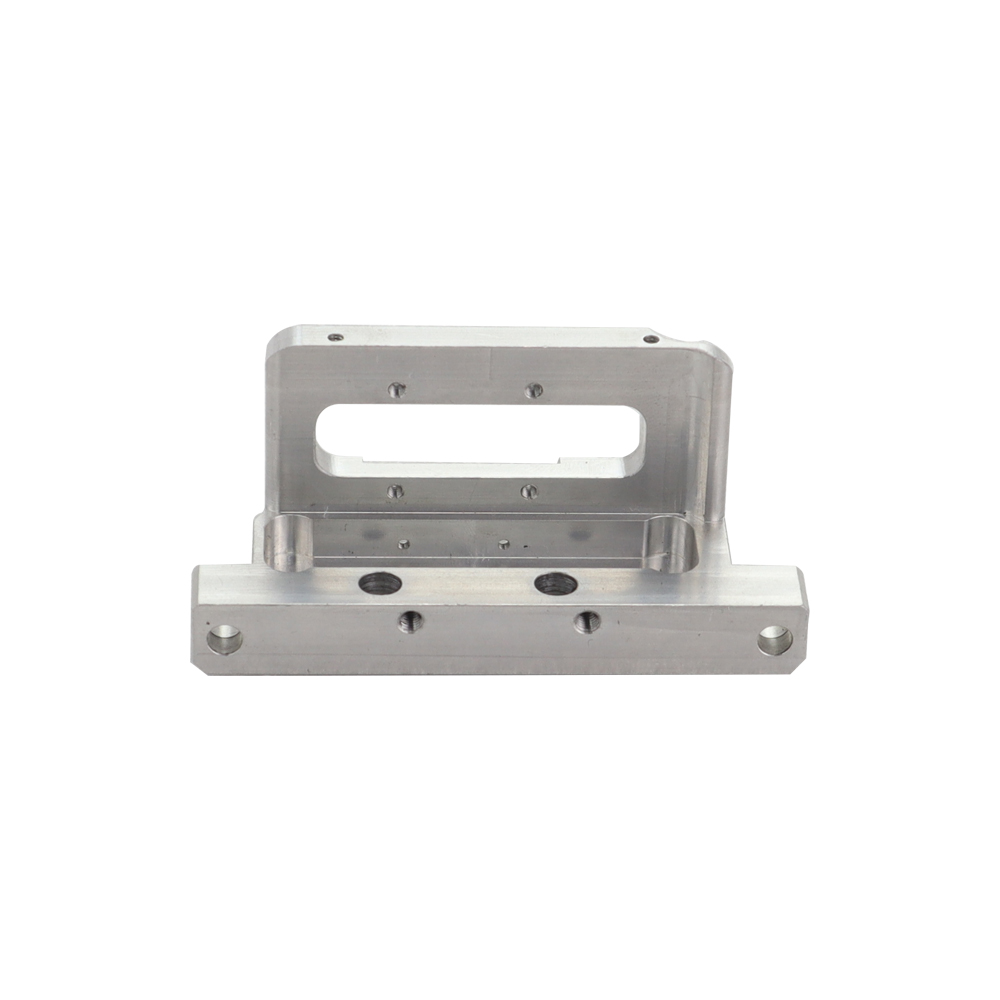

This product is a silver metallic L-shaped mechanical component composed of two main parts:

Upper Rectangular Plate: Features a central open-ended slot with multiple distributed screw holes around it.
Lower Horizontal Rectangular Plate: Includes three circular holes and two counterbored holes.
The component has a smooth metallic luster and is mounted on a pure white background, highlighting its precision engineering. Designed for industrial machinery or equipment applications.

Parameter	Technical Specifications
Material	Aluminum Alloy 6061 (Estimated) or Stainless Steel 304
Dimensions	Total length ≈150mm × Width 80mm × Thickness 10mm (Estimated) Upper plate: 60mm × 40mm (with slot) Lower plate: 100mm × 50mm
Structure	L-shaped body + Upper rectangular plate (with slot and screw holes) + Lower plate (with circular/counterbored holes)
Surface Finish	Mirror polishing (Ra ≤0.8μm)
Load Capacity	Static load ≥20kg (ISO 6055 standard)

Functional Structure
- L-Shaped Design: Optimizes space efficiency for narrow installation environments.
- Upper Plate:
  - Open-ended slot for lightweight or component adaptation.
  - Distributed screw holes (e.g., M4/M5 countersunk screws) for rapid assembly (shear strength ≥8kg).
- Lower Plate:
  - Three circular holes and two counterbored holes for sensor mounting or pipeline fixation.
Material & Process
- Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant.
- Stainless Steel 304 Option: Enhanced wear resistance for harsh environments.
- Mirror Polishing: Smooth surface (Ra ≤0.8μm) reduces friction and improves aesthetics.
Mechanical Optimization
- Hole edges feature R0.3mm fillet transitions to prevent stress concentration.

Industry	Typical Use Cases
Industrial Equipment	Machine tool fixtures / Hydraulic valve brackets
Automation Machinery	Robotic arm joints / Sensor mounting bases
Automotive Components	Transmission housing fasteners / Cooling system piping

✅ Supported Customizations:

Adjust L-angle, hole distribution, or plate dimensions (requires 3D model in STEP format).
Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
Surface treatment customization (sandblasting/anodizing/satin texture).

⚠️ Requirements:

Technical Support
Tel: +86 150-1532-6863
Email: cassy@xqdmachining.com
Website: https://xqdmachining.com/index.html

Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
