Products Description
Product Name: Red Cylindrical Metal Connector
Product Overview

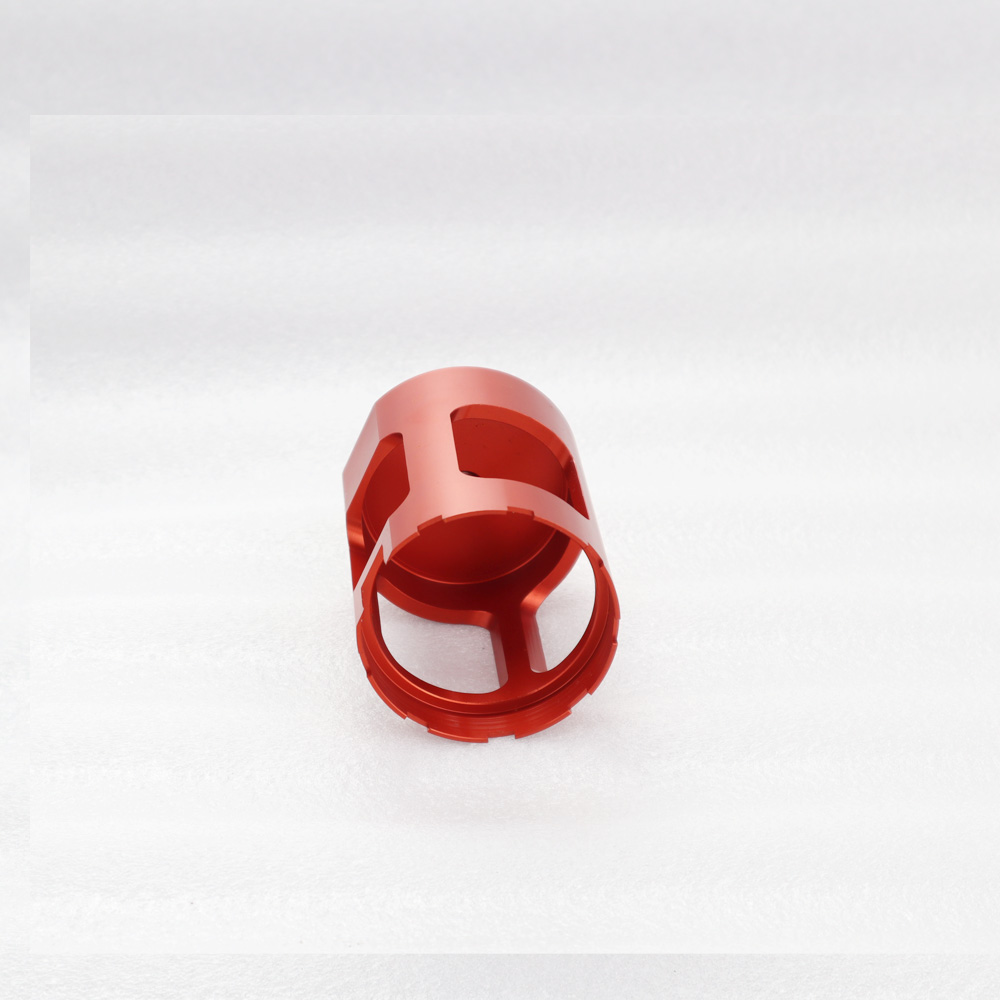

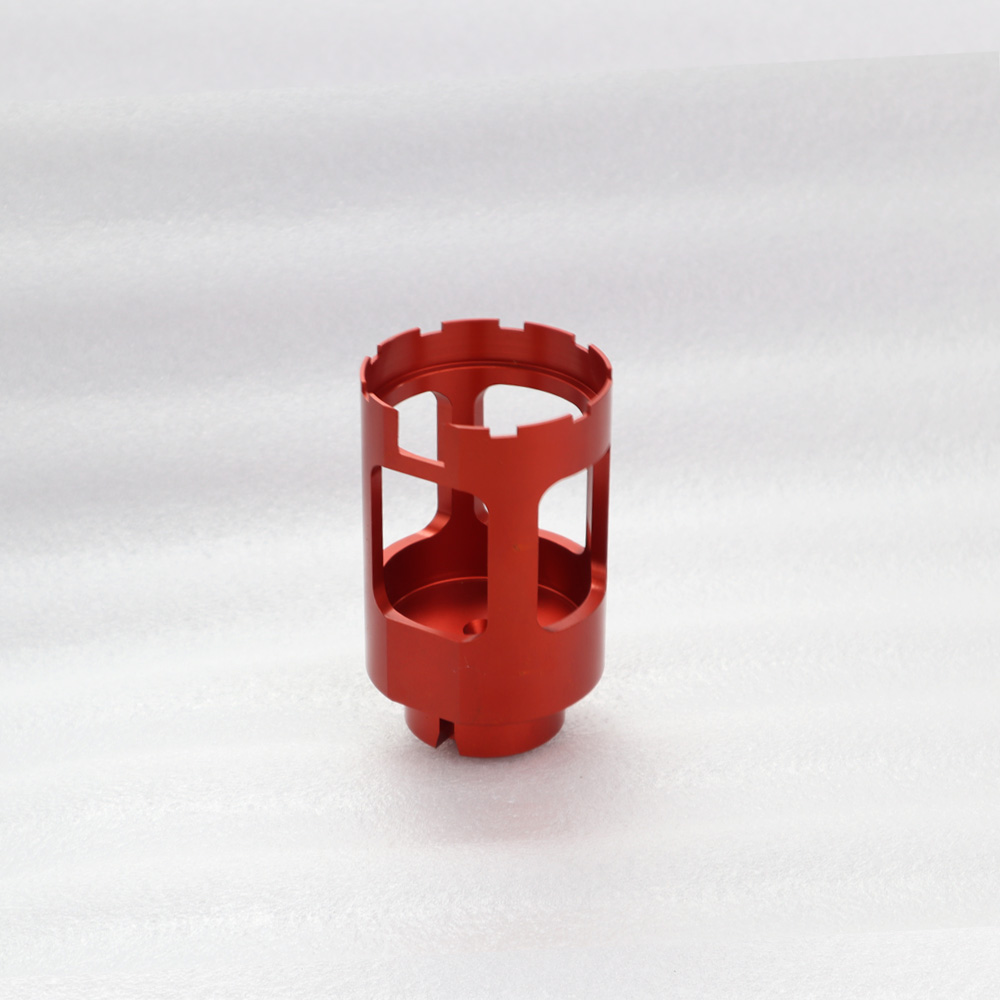

This product is a red metal cylindrical component with an industrial-grade smooth finish. The main body features a cylindrical design with a nested smaller cylinder at the top and a central threaded hole. The body includes symmetrical rectangular cutouts, while the bottom edge has a serrated pattern. Mounted on a pure white background, the design highlights its mechanical aesthetics and functional details, making it suitable for industrial equipment, mechanical assembly, or tool components.
Core Parameters
| Parameter | Technical Specifications |
|---|---|
| Material | Aluminum Alloy 6061 (Estimated) or Stainless Steel 304 |
| Dimensions | Total length ≈100mm × Diameter Φ30mm Top nested cylinder: Φ15mm Bottom serration height: 2mm |
| Structure | Cylindrical body + Top nested cylinder + Symmetrical rectangular cutouts + Bottom serrated edge |
| Surface Finish | Mirror polishing (Ra ≤0.8μm) |
| Load Capacity | Static load ≥15kg (ISO 6055 standard) |
Design Highlights
Functional Structural Design
- Top Nested Cylinder: Enhances structural rigidity and supports standard bolt/pin installation (shear strength ≥8kg).
- Symmetrical Rectangular Cutouts: Reduces weight by ~15% while providing space for pipeline fixation or sensor mounting.
- Bottom Serrated Edge: Anti-slip design (friction coefficient μ ≥0.6) to prevent displacement during assembly.
Material & Process Compatibility
- Aluminum Alloy 6061: Lightweight (density 0.9g/cm³) and corrosion-resistant, ideal for precision equipment. Stainless Steel 304 option available for enhanced wear resistance.
- Mirror Polishing: Reduces friction coefficient (μ ≤0.12), minimizes assembly scratches, and improves industrial aesthetics.
Mechanical Optimization
- Rectangular cutout edges feature R0.3mm fillet transitions to reduce stress concentration and extend service life.
Application Scenarios
| Industry | Typical Use Cases |
|---|---|
| Industrial Equipment | Machine tool fixture positioning / Hydraulic valve brackets |
| Automation Machinery | Robotic arm joint interfaces / Sensor mounting bases |
| Automotive Components | Engine part fixation / Cooling system piping |
Customization Services
✅ Supported Customizations:
- Adjust cutout dimensions, thread specifications, or serration height (requires 3D model in STEP format).
- Material upgrades (e.g., titanium alloy Ti-6Al-4V for high-stress applications).
- Surface treatment customization (sandblasting/anodizing/brushed texture).
⚠️ Requirements:
- 3D models and tolerance documents (ISO 2768 standard) required.
Technical Support
Tel: +86 150-1532-6863
Email: cassy@xqdmachining.com
Website: https://xqdmachining.com/index.html
Note: All parameters comply with ISO 9001 standards. Free DFM analysis provided.
