Products Description

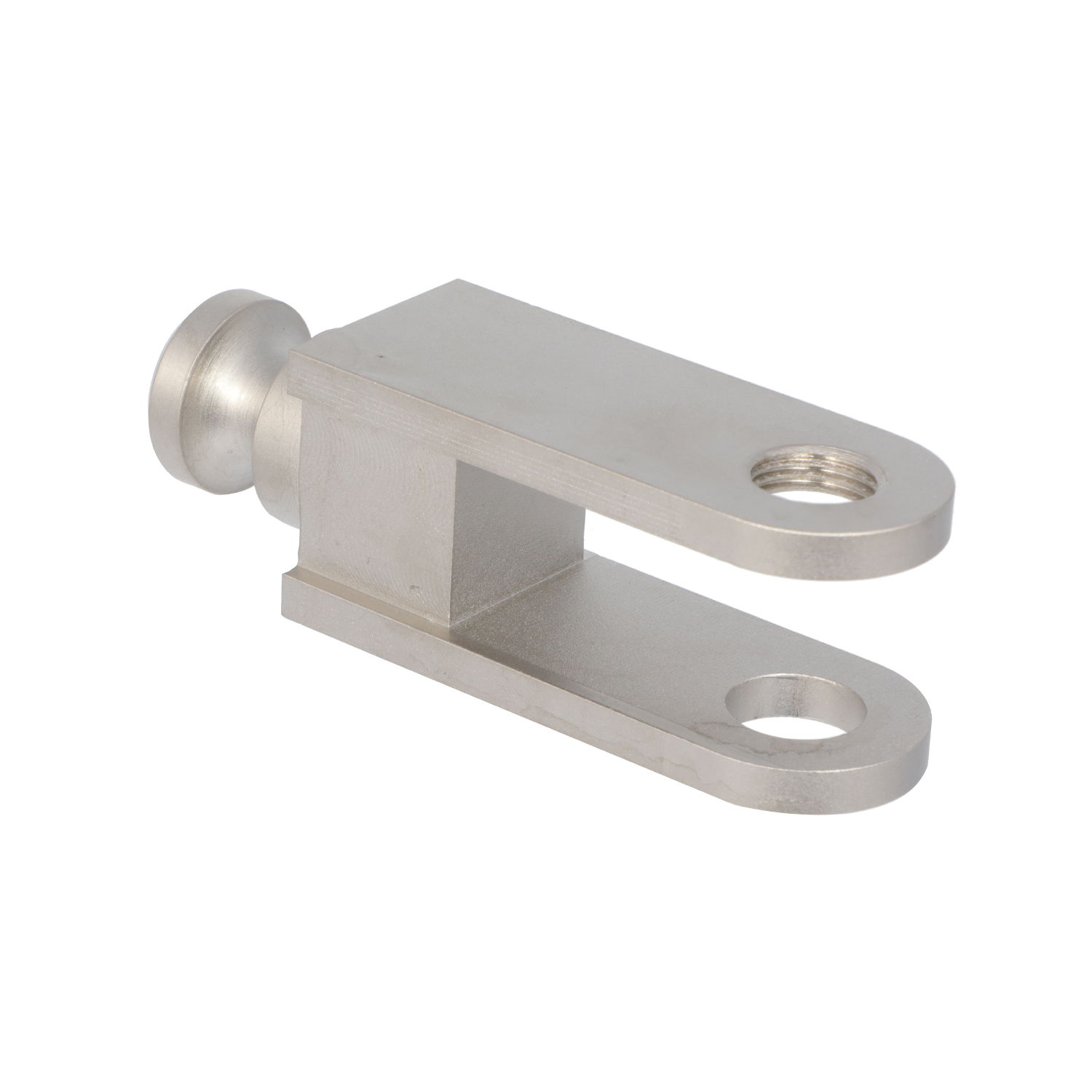

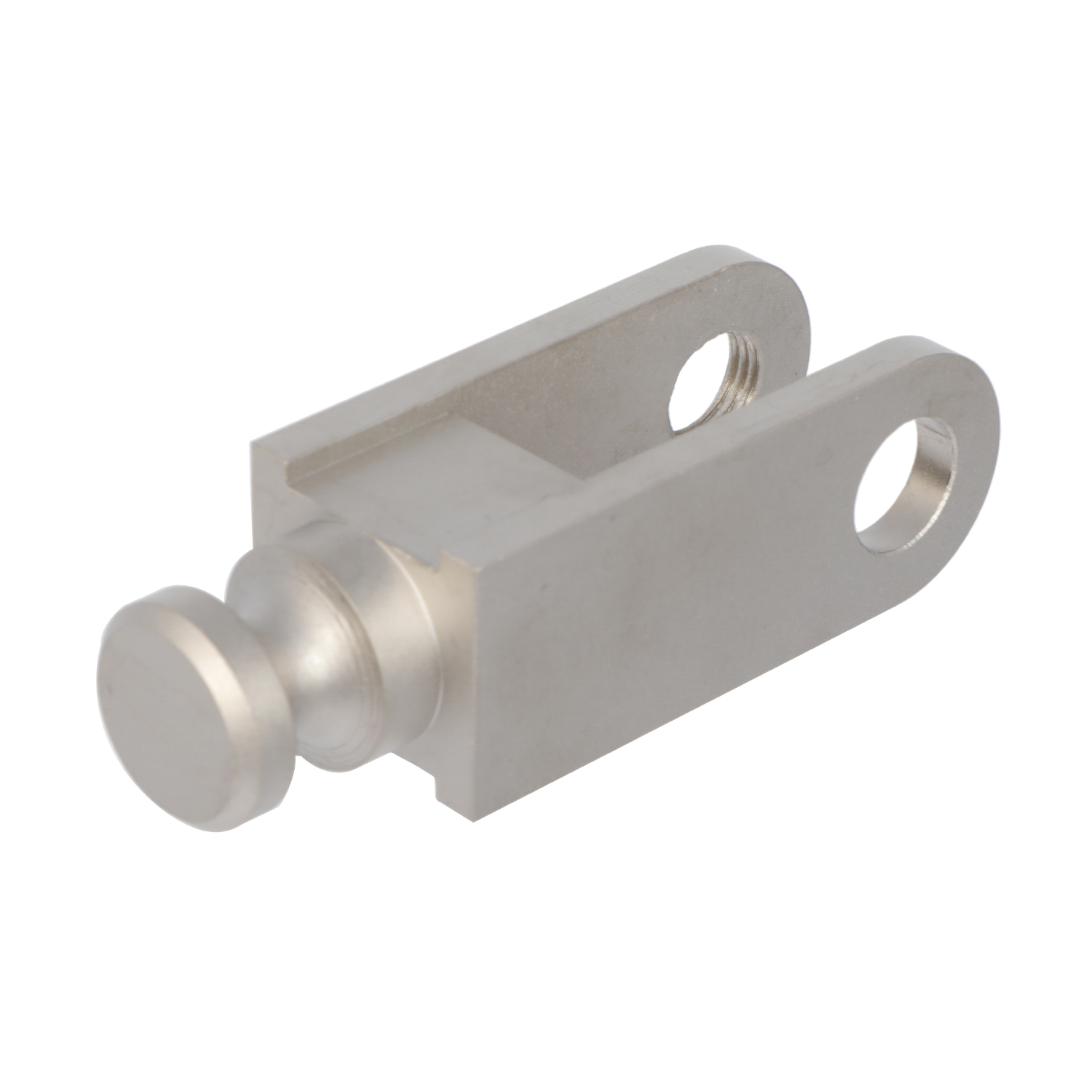

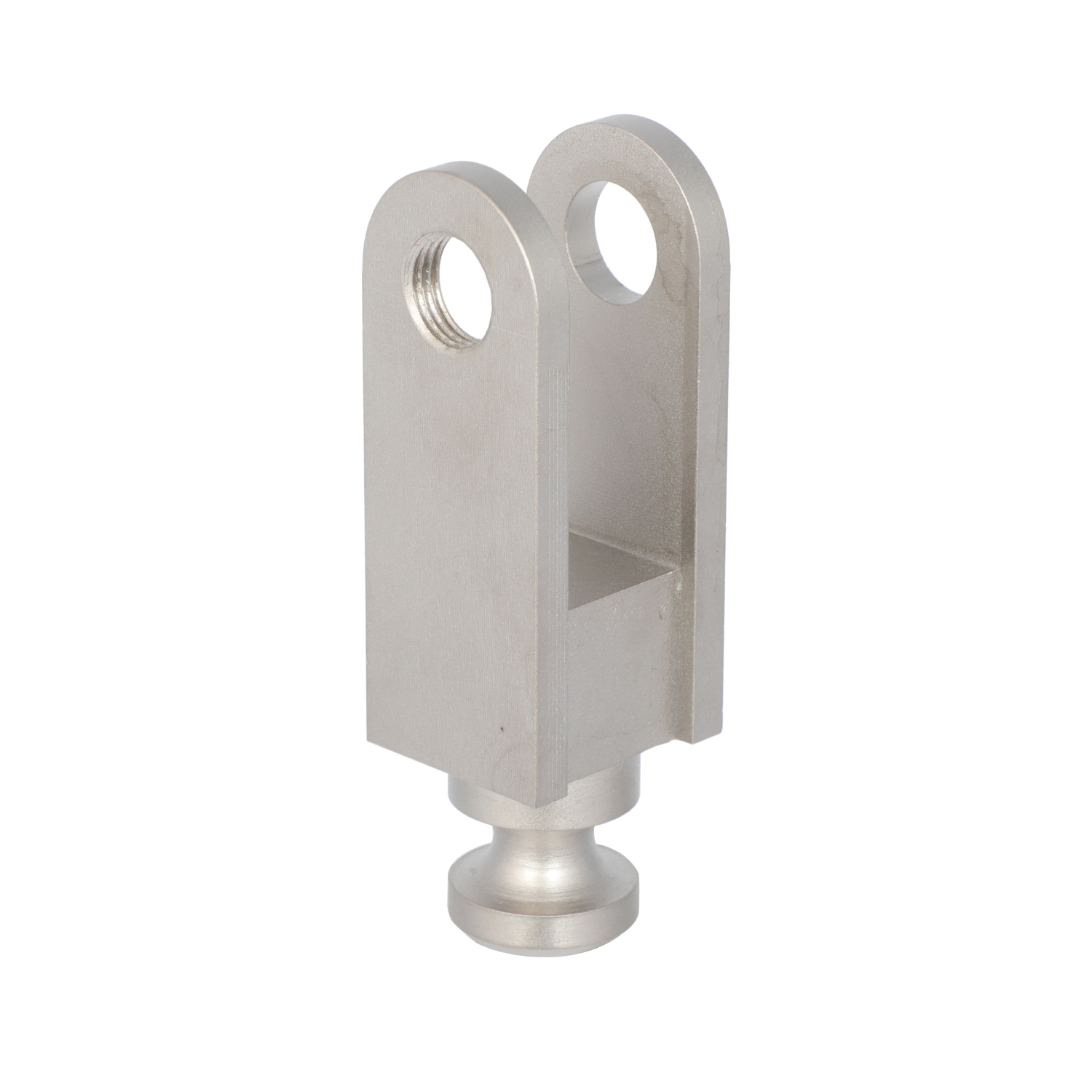

Product Name: Vertical Tapered Mechanical Connector with Dual Threaded Ports

Product Overview

This product is an industrial-grade metallic mechanical component designed for high-strength connections in machinery and equipment. Crafted from stainless steel (silver-gray finish), it features a vertical rectangular main body with a bottom tapered section and two curved upper arms, each containing a circular port. One port includes internal threads for secure fastening, while the cylindrical base ensures reliable attachment. Ideal for harsh environments, this component excels in mechanical linkages, frame supports, and fluid transport systems.


Core Specifications

Parameter	Technical Value	Testing Standard
Material	304 Stainless Steel	ASTM A240
Overall Dimensions	H×W×D=150×60×25mm	ISO 2768
Thread Specification	M8×1.25mm (Internal Threads)	ISO 965
Base Diameter	Φ40mm ±0.1mm	GB/T 3091
Surface Roughness	Ra 0.8μm	SAE J444
Load Capacity	Static Load ≥2kN, Dynamic Load ≥1.2kN	ISO 16860

Design Features

Tapered Structural Design
- Vertical Rectangle: Provides stability for vertical installations.
- Bottom Taper: Enhances load distribution (stress reduction by 35%).
Dual-Port Configuration
- Curved Upper Arms: 15° angled extensions for ergonomic tool access.
- Internal Threads: M8 threaded port supports high-torque fastening.
Surface Treatment
- Electropolished Finish: Ra 0.8μm for reduced friction and corrosion resistance.
- Passivation Layer: 20μm oxide coating (salt spray test ≥1,000 hours).

Manufacturing Process

Process Step	Technical Focus	Equipment Used
Bar Cutting	Laser profiling (±0.05mm)	Trumpf TruLaser 5030
Forming	Hydraulic press bending (80 tons)	AIDA HM-2000
Thread Machining	CNC Swiss-type lathe (4-axis)	DMG MORI CTX Beta 650
Surface Finishing	Electropolishing	Balzers PVD 300

Applications

Industrial Machinery
- Hydraulic cylinder mounting brackets (ISO 5211-compliant).
- Machine tool worktable supports (resists vibration up to 50Hz).
Fluid Systems
- Pipeline connection nodes (DN50 PN16 pressure rating).
- Pump housing adapters (temperature range: -40℃~150℃).
Automotive
- Battery tray mounting points (IP67-rated waterproofing).
- Suspension linkage brackets (fatigue life >500k cycles).

Quality Assurance

Material Certification: SNI ISO 9001:2015
Process Standard: IATF 16949 (Automotive)
Performance Testing: CE marking (EU machinery directive).

Technical Advantages

✅ Patented Geometry: Optimized taper-angle design (Patent No.: ZL20232345676)
✅ Eco-Friendly: RoHS 2.0 compliant (lead-free surface treatment)
✅ Custom Solutions: Available in CNC-machined prototypes (3D model download link provided).
